Desain Tiga Fase Uniform Pulse-Width Modulation (UPWM) Dengan Dspicc30f4011 Guna Mengatasi Dip Tegangan Dan Interupsi

Stepanus, and Silalahi, Eva Magdalena and Salebbay, Jalius (2018) Desain Tiga Fase Uniform Pulse-Width Modulation (UPWM) Dengan Dspicc30f4011 Guna Mengatasi Dip Tegangan Dan Interupsi. Jurnal Lektrokom, 1 (1). pp. 1-10.

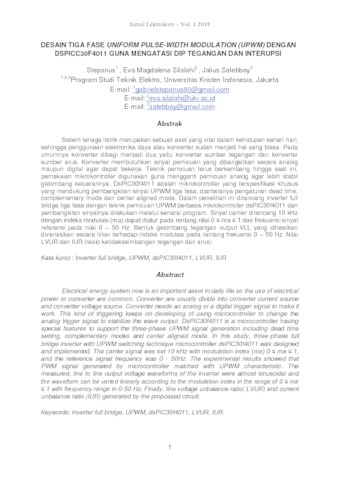

[img] Text
B2. Desain Tiga Fase Uniform Pulse-Width Modulation (UPWM) Dengan DSPICC30F4011 Guna Mengatasi Dip Tegangan dan Interups

Download (654kB)

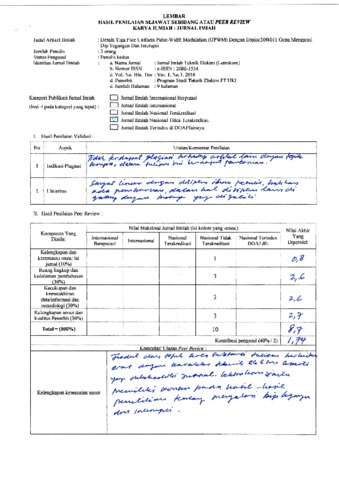

[img] Text (Peer_Review)
B2. Peer Review Desain Tiga Fase Uniform Pulse-Width Modulation (UPWM) Dengan DSPICC30F4011 Guna Mengatasi Dip Tegangan

Download (1MB)
Official URL: http://ejournal.fakultasteknikuki.asia

Abstract

Electrical energy system now is an important asset in daily life so the use of electrical power or converter are common. Converter are usually divide into converter current source and converter voltage source. Converter needs an analog or a digital trigger signal to make it work. This kind of triggering keeps on developing of using microcontroller to change the analog trigger signal to stabilize the wave output. DsPIC30f4011 is a microcontroller having special features to support the three-phase UPWM signal generation including dead time setting, complementary modes and center aligned mode. In this study, three-phase full bridge inverter with UPWM switching technique microcontroller dsPIC30f4011 was designed and implemented. The carrier signal was set 10 kHz with modulation index (ma) 0 ≤ ma ≤ 1, and the reference signal frequency was 0 - 50Hz. The experimental results showed that PWM signal generated by microcontroller matched with UPWM characteristic. The measured, line to line output voltage waveforms of the inverter were almost sinusoidal and the waveform can be varied linearly according to the modulation index in the range of 0 ≤ ma ≤ 1 with frequency range in 0-50 Hz. Finally, line voltage unbalance ratio( LVUR) and current unbalance ratio (IUR) generated by the propossed circuit. Keywords: Inverter full bridge, UPWM, dsPIC30f4011, LVUR, IUR.

Item Type: Article
Subjects: TECHNOLOGY > Electrical engineering. Electronics. Nuclear engineering > Production of electric energy or power. Powerplants. Central stations
TECHNOLOGY > Electrical engineering. Electronics. Nuclear engineering > Distribution or transmission of electric power
Depositing User: Ms Sari Mentari Simanjuntak
Date Deposited: 12 Mar 2020 08:08
Last Modified: 18 Mar 2020 04:39
URI: http://repository.uki.ac.id/id/eprint/1374
